Cotto reassembled with resin

the technical catalogue of the Sannini
logo file pdf DOWNLOAD 61,6 Mb


Can one talk about a revolution with regard to a material? In the case of Cottostone, reality goes far beyond the imagination, making possible through advanced technologies what in nature is unfeasible.
The ancient tradition of “coccio pesto” (crushed terracotta), which can be found in the houses of Pompeii and many Palaeo-Christian basilicas, is adopted with exceptionally large terracotta slabs measuring a maximum of 140 x 305 cm. On one hand we have terracotta made from clay dried in kilns at over 1000 °C and on the other, blocks of material obtained from the mountains and then cut into slabs for cladding: Sannini, in a joint-venture with Stone Italiana, patenting this new material - a blend of history and technology - has succeeded in founding two different cultures, two different methods of use, associating the qualities of one to those of the other.
The traditional limitations of dimension are nothing but a memory, while an unknown world for terracotta is opening, a world of raised floors in reinforced Cottostone, cavity walls and all the potential uses of stone known to this day. In its basic sizes of 60 and 120 cm, Cottostone leaves the factory chamfered and gauged. Currently available in three variations with the best quality cotto, crushed and bound with special resins and natural quartz, this material is an absolute novelty to the world and represents Sannini’s challenge to conquer the third millennium.

product Sannini Impruneta: Cotto reassembled with resin
product Sannini Impruneta: Cotto reassembled with resin

USE

For indoors only.
Dry warehouse stocking is necessary to maintain the product’s quality.
For ordinary maintenance simply clean the floor with a neutral diluted detergent, possibly with warm water.

PAVEMENTS FOR INTERIORS

Finishes

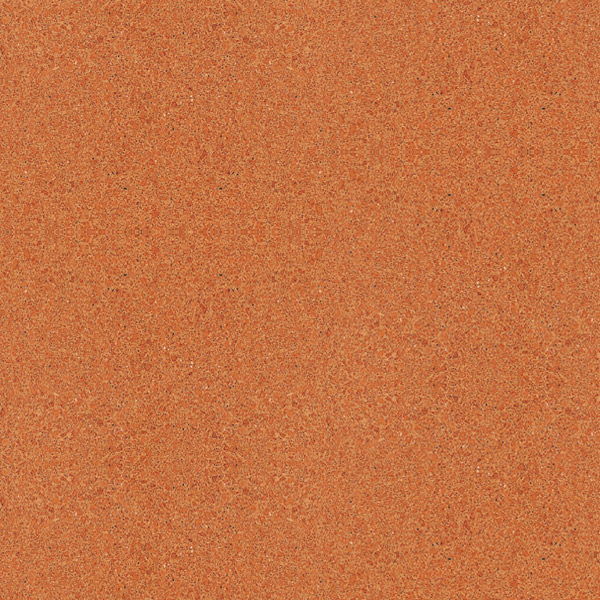

Tecnostone

finiture cottostone: tecnostone

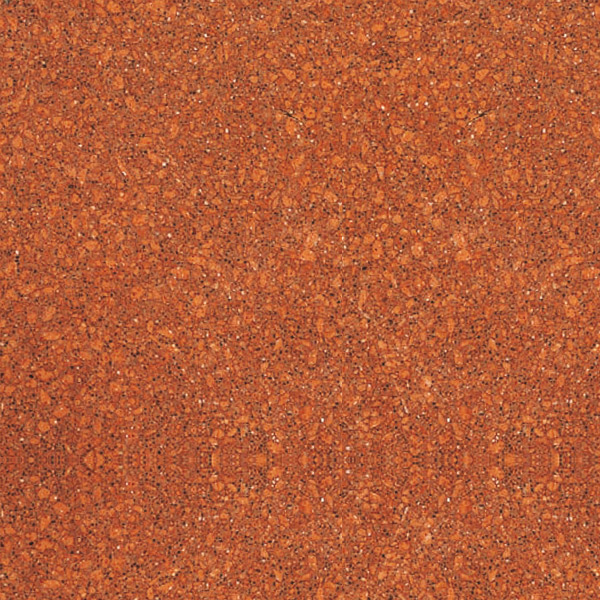

Cocciopesto

finiture cottostone: cocciopesto

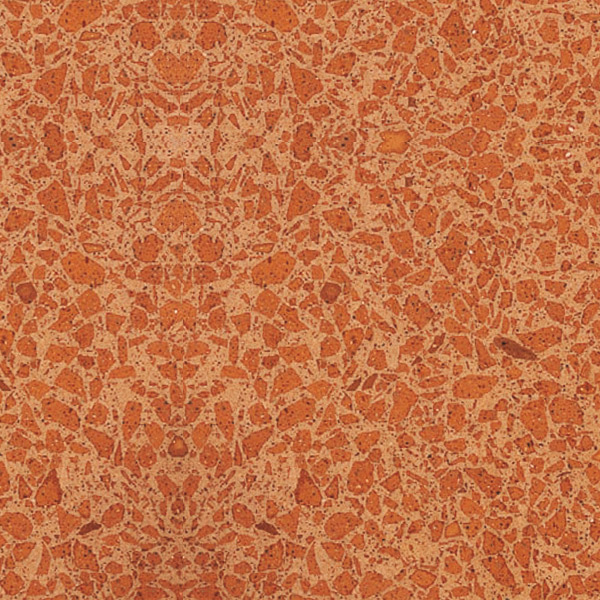

Palladiana

finiture cottostone: palladiana




TECHNICAL DATE

Technical-date Cotto reassembled with resin
logo file pdf DOWNLOAD 28 Kb

INSTALLATION

For floors bi-component adhesives only like Mapei Granirapid, Keralastic, or similar.
Minimum joint advised 4-5 mm for traditional flooring.
Expansion joints at 3x3 m are necessary.
After installation and grouting, it is recommended to wash the floor with a diluted neutral detergent to remove dirt and cement from the surface; hence an anti-stain treatment is requested.

Formats

TYPE

SQUARE

mattonella in cotto quadrata

MEASURE in

23,5x23,5

THICKNESS in

0,51-0,79-1,2

TYPE

RECTANGLE


mattonella in cotto rettangolare

MEASURE in

55x118
23,5x47
12x23,5

THICKNESS in

0,51-0,79-1,2
0,51-0,79-1,2
0,51-0,79-1,2

Cottostone in Slab Form
Cottostone is available, at request, in all three finishes, with different thicknesses - 2 and 3 cm - for curtain walls or reinforced with metal grids for raised floors.
At request available special sizes, steps and coved skirting.Cottostone can be worked in the same way as any other stone-type material in slab form. For this reason it is possible to produce pieces with a maximum length of up to 3 metres.

“Require Informations”.
